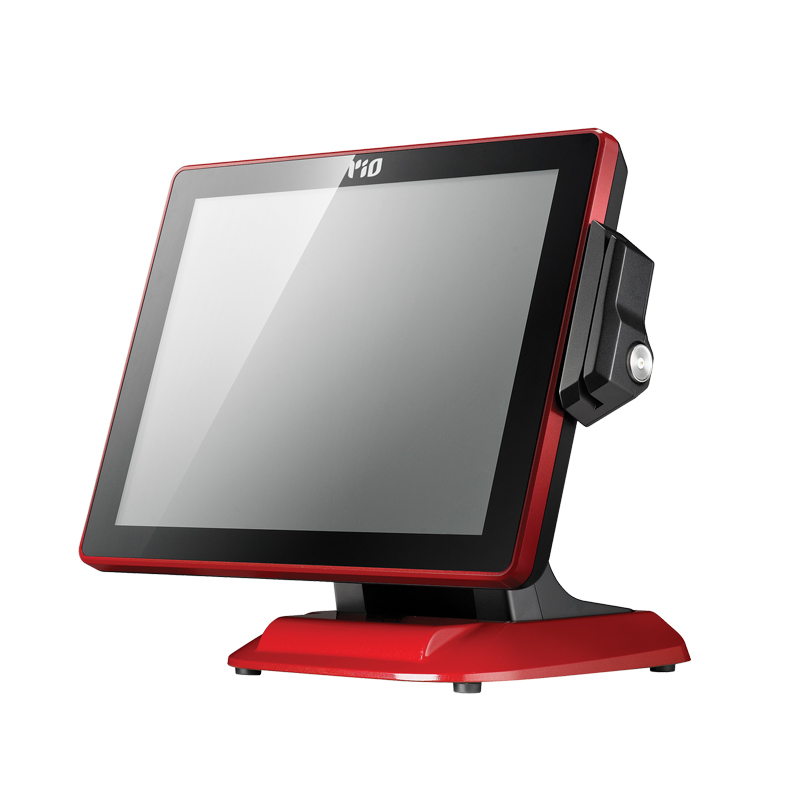

iMaverick Series POS Terminal

iMaverick PT6410 / PT-7500(i3) / PT-7500(i5)
All-in-one Panel PC Style

Features:
• All-in-one panel PC style with 15” touch display
• IP64 water and dust proof protection for front panel
• Stylish and rimless flat panel design with VESA mount supporting
• Optional built-in VFD or 8” / 15” customer display
• 5V/12V DC powered COM with jumper-less BIOS setting
• Easy installation and maintenance for HDD and CF / CFast card slot
• Optional 1D/2D barcode scanner, MSR, smart card, Mifare RFID, iButton or fingerprint reader devices



Category: Tags: , , , ,

Description

Model PT-7500 (i5)
Display
LCD Display Size TFT LCD 1024×768
Max. Resolution 350 cd/m 16.2M/
Brightness 262K colors LED
Touch Panel
Type Five-Wire Analog Resistive or Projected Capacitive
Processor
CPU/ Chipset – i5 Intel® Core™ i5-4570TE 2.7GHz
CPU/ Chipset – i3 Intel* Core i3-2120 Processor 3.3GHz 3MB Cache
Memory One SO-DIMM socket supports DDR3 1600 up to 8GB
Storage CFast x 1 2.5″ SATAIIl HDD x 1
USB X 2 (USB 2.0) X 2 (USB 3.0)
PS/2 X 1 (for
Keyboard)
Powered COM X 2 (D-type 9 pins powered COM with DC 5V/ 12V selection)
I/O
COM X 1 (RJ45 CONN)
Connectors
Cash Drawer Port X 1 (12V RJ11 cash drawer port)
Line-out X 1
Audio Port
Mic-in		 X 1
Speaker X 1
VGA X 1
Parallel X 1 (optional)
Network
LAN X 1 (RJ45 10/100/1000 Base-T)
Option VFD/ Second display/ MSR/ iButton/ Fingerprint reader/ Smart card reader/ MIFARE RFID/ 2D Barcode scanner
Environment
Temperature
Operation 32° to 95° F (0° to 35° C)
Storage -4° to 140° F (-20° to 60° C)
Relative Humidity 20% to 80% non-condensing
Power Supply 180W power adapter
OS Support WS7E / POS Ready 7 / Windows Embedded 8.1 Industry
Chassis Housing Aluminium
Dimension 323.6(W) x 264.2(H) x 368(D) mm
