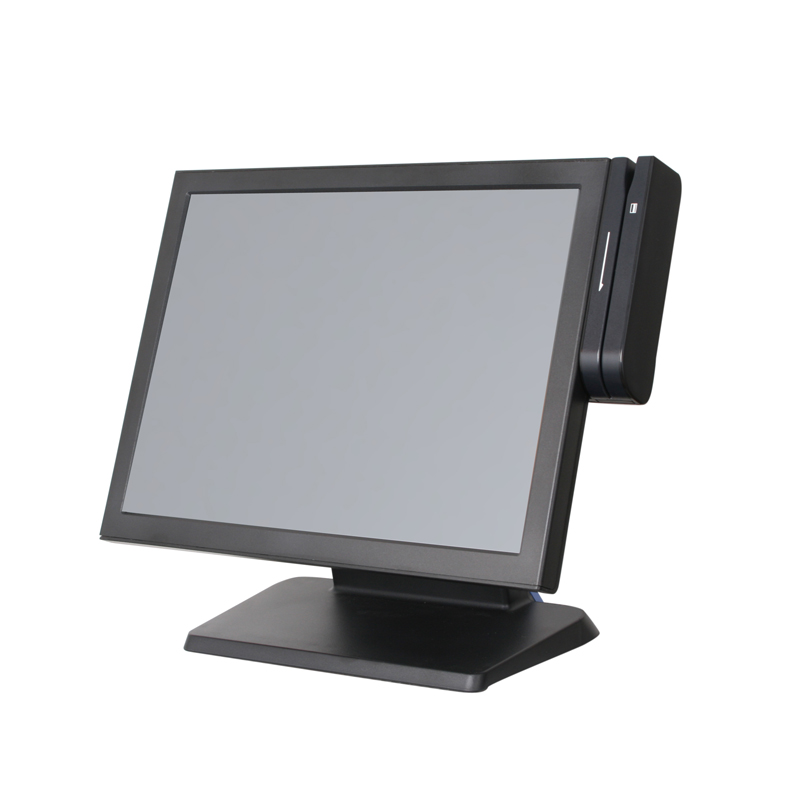

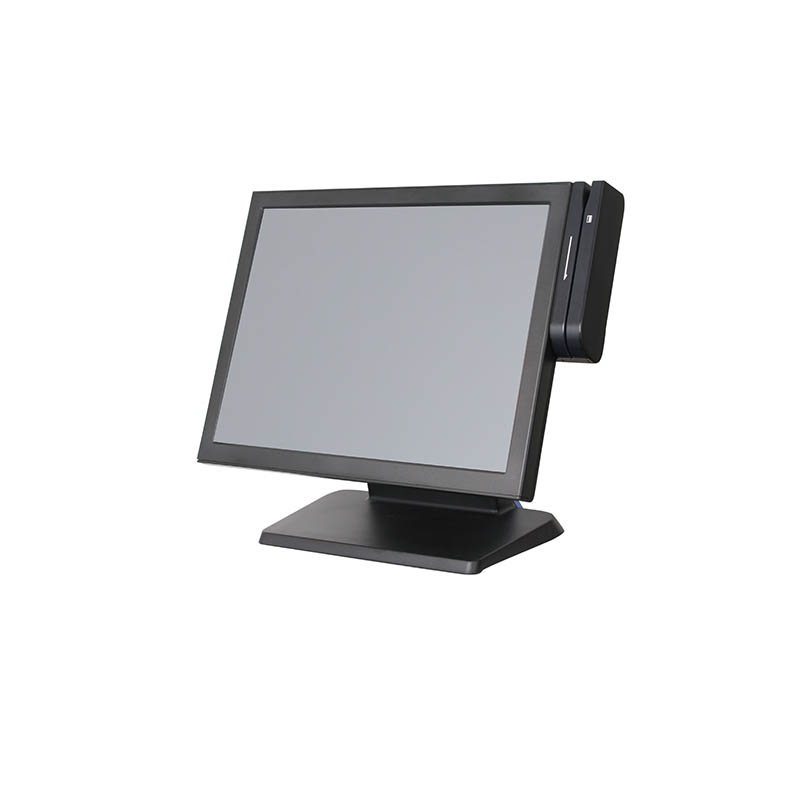

P6000E 15” Touch Monitor

Model: PP-6000E

Colors that reflect the user’s unique Style & Business Requirements

 Features:

  • 5-Wire Resistive technology
  • Combo USB/R S 232 Touch I/F
  • Combo Internal AC & External DC Adaptor
  • MSR Built into the side of 6000E
  • VESA 75 x 75 Mount Hole Default

Description

Model PP-6000E
LCD Panel
Screen Diagonal 15” Active Matrix TFT LCD
Pixel HxY 1024 x 768
Aspect Ratio 4:3 Ratio
Response Time 8 msec (Typ)
Support Color 16.2M / 262K Colors
White Luminance 250 (Typ) ( cd/m2)
Contrast Ratio 700:1 (Typ)
Surface Treatment Anti-Glare, Hardness 3H
Touch Screen
Type 4/5-wire Resistive Touch Screen
Interface USB I/F only / Combo RS232 & USB I/F
OS Supported DOS, WIN, LINUX, IMAX
Video Input
VGA Signal (Input Signal) Analog
RGB
Scan Frequencies 55-76Hz(V) / 31~80KHz(H)
Input Video Signal D-sub 15 Pin Female Cable
Control
OSD Button Power/ Select/ Menu/ Up/ Down
Power
Type Combo Internal AC & External DC Adapter
Input Voltage Universal AC 100~230 V, 50/60 Hz
Output Voltage DC 12V/5V(Inverter/main), 2.5A
Consumption 20W
Environment
Temperature Operating: 0~400C, Storage: -20~600C
Humidity Operating: 30~85%, Storage: 5~90%
Weight
Product/Stand 2900/1700 grams
Safety & EMI CE, FCC, RoHS
