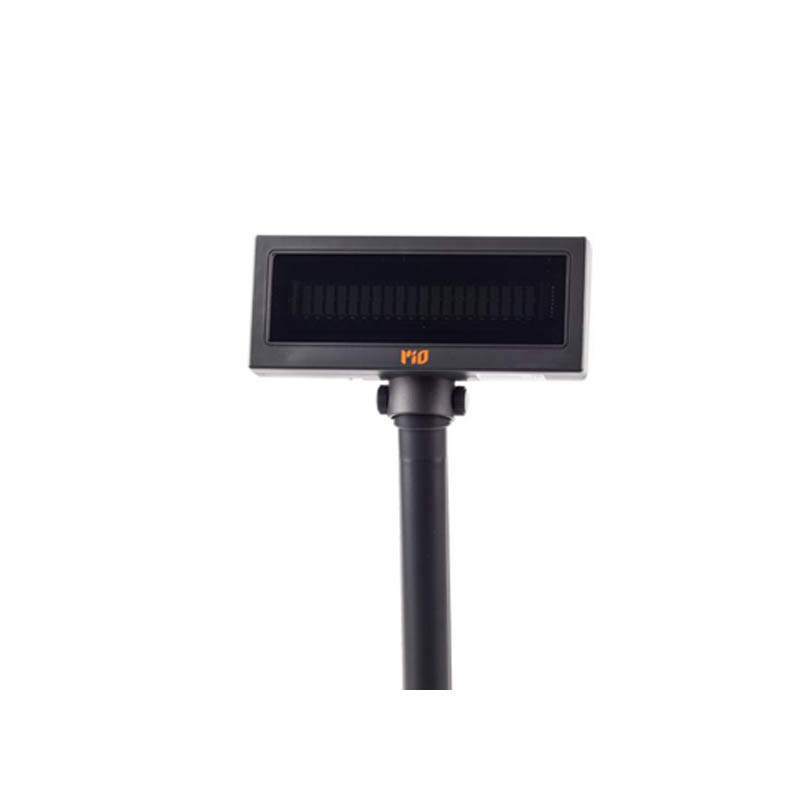

Model: RPD 200
Features:
• Data can be display on 20 columns x 2 lines
• Display panel is adjustable to provide the best view angle
• Provide 2 pole for best position installation
• Esc/pos command compatible
• International character set is selectable
• User-defined characters can be download
• User-defined message can be download
• Green power function
• Provides interface on RS-232C, USB for option.
| Model | RPD-200 |
| Display | |
| Display Method | VFD display (blue green) |
| Brightness | 700 cd/m2 |
| Number of character | 20 columns x 2 lines |
| Viewing | |
| Character type | 5 x 7 dot matrix |
| Character size | 5.25 x 9.03 mm |
| Fonts | 96 alphanumeric, 13 international character sets, 1 user define character |
| Viewing angle (Horizontal) | 120 degrees |
| Viewing angle (Vertical) | 90 degrees |
| Rotation angle (Horizontal) | 350 degrees |
| Tilt angle | 0 ~ 60 degrees |
| Electrical | |
| Power Supply | 9 ~ 45Vdc 5Vdc |
| Power Consumption | 6W (Max.) |
| MTBF | 25,000 hours (working hours) |
| Operations | |
| Operating Temperature | 0 ~ 50 |
| Operating Humidity | 5 ~ 95 % RH |
| Storage Temperature | -20 ~ 60 |
| Storage Humidity | 5 ~ 95 % RH |
| Panel Dimensions | 224 (W) x 93 (H) x 50 (D) mm |
| External Dimension | Long 225(W) x 100(D) 560(H)mm, Middle 225(W) x 100(D) 285(H)mm, Short 225(W) x 100(D) 195(H)mm |
| Connectivity | RPD200 SU – Connect-Serial l Power-USB RPD200 SA – Connect-Serial l Power-External Adaptor RPD200 UB – Connect-USB l Power-USB |
| Weight | 1.25 kg |
