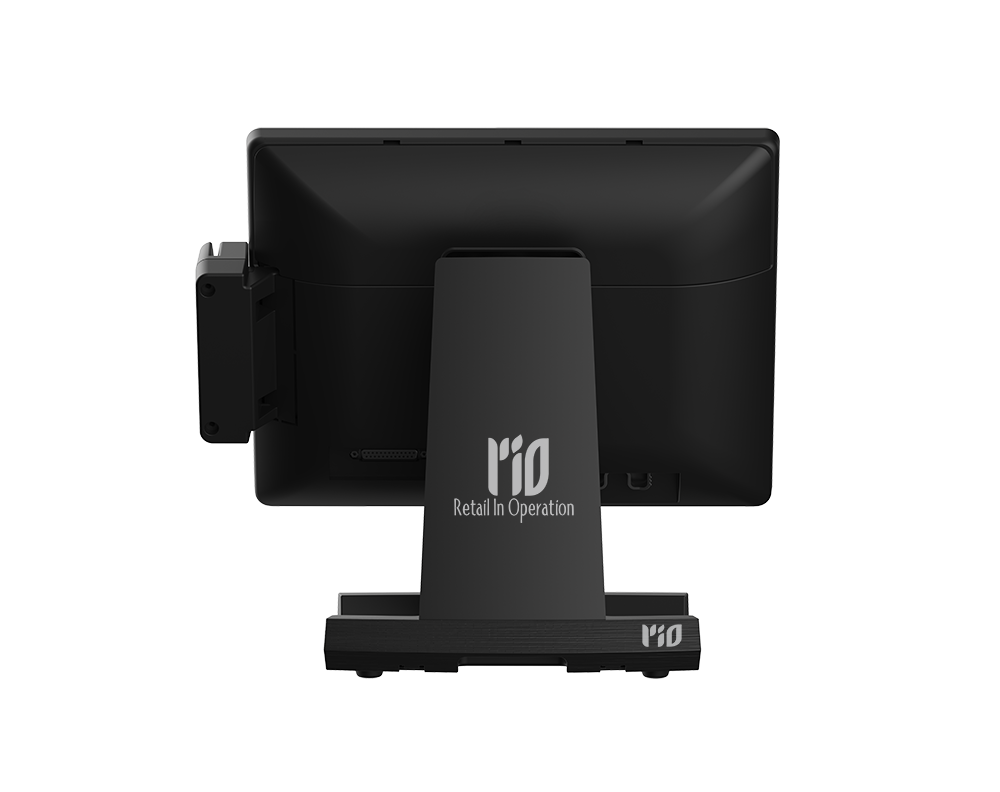

Xander 9

Model: PT 5690

XANDER 9 is an all-in-one type POS system designed for popular POS terminal model. True All-in-One as Kiosk and POS in one terminal, Simple assemble way to transform POS (Landscape) to Kiosk (Portrait), and vice versa

Features

  • All-in-one ventilation frame structure which has high heat-treatment ability (No noise, Low heat Fanless )

  •  Faster and more accurate capacitive-flat typed multi(l0-point) touch screen

  • More convenient and easer installation structure by top 1/0 panel location

  • Diverse 1/0 ports to connect many types of devices

  • Serial x 6(DB9x3, RJ50x2, RJ 11 xl), Parallel x 1, USB x 6

  • Powerful functions of8th generation’s i3/i5/i7 processors or reasonable priced Intel® Celeron Processor can be chosen

  • Abundant I/O Ports Wide space for I/O Port connection Multi Display available

Category: Tags: , , , , , ,

Description

Model PT-5690 J PT-5690 i
Processor 7th or 8th Generation Intel Core i3, i5, i7 Processors Intel Celeron Quad Core Processor J1900 2.0GHz
Chipset/BIOS Intel Kaby Lake SoC/ AMI Intel Baytrail SoC/ AMI
Storage 2.5” SSD 64GB (SSD 128GB/HDD 500gb, Optional)
Memory 4GB, DDR4 2133MHz  2 slot (Max 32GB, Optional) 2GB, DDR3L 1600MHz x 1 Slot (Max 8GB, Optional)
Graphics Intel HD Graphics 520/ Intel HD Graphics 620 Intel
Multi Display 3 (# of Displays Supported) 2 (# of Displays Supported)
Expansion Slot 1 x mini PCI-e
OS Windows 10 loT Value/High End, POSReady 7 POS Ready 7, Windows 10 loT Entry
Main Display Type 15″ WLED Backlight (Brightness: 400 cd/m, Resolution: 1024×768)
Touch Projected Capacitive Touch (PCAP): 10 Point Multi Touch
USB 6 (2 x USB 3.0 Rear Top, 4 x USB 3.0 Rear Bottom) 6 x USB 2.0 (Rear Top x 2, Rear Bottom x 4)
Serial 6 (DB9 x , RJ50 (RJ45) x 2, RJ11 x 1)
COM1, 3, 5(DB9):+5v on Pin #9, Selectable by BIOS
COM2,4 (RJ50, RJ45): Support +5V and 12V for special devices and can be used for kitchen printer
COM6(RJ11): USB 2.0 and RS232 with + 5V/1A for Card Reader
LPT (Parallel) 1 (LPT/DB25 on Rear Bottom)
Audio 1 x Audio-out/3.5mm (changeable for MIC)
Secondary Display 1 x DisplayPort (Included 1 x USB 2.0/ Power Delivery +12V) *can be used for HDMI and DVI, VGA Monitor by Converter Cable
LAN 1 X RJ45 (Base-T 10/100/1000 Ethernet)
2nd Display Display Type: 9.7″ or 15″ LCD (1024  x 768 Resolution)
Touch Display Type: 9.7″ or 15″ LCD with Capacitive Touch and support 1 x USB 2.0 Port
*P2C Display Functions: Supported Multi Display Function by DP MST Hub/ Supported Standard HDMI, DVI, DP by each cable
Customer Display (CDP) VFD Type (Alphabet & Numeric, 20 characters x 2 lines)
Card Reader (MSR/SCR) Smart Card Reader: ISO/IEC7816 EMV Level 1
Magnetic Stripe Reader: ISO 7811 ID-1 All Tracks *Interface: USB (HID) and RS232C(COM6)
Dallas Reader Dallas Reader (i-button): 6 characters/ prefix and suffix *Interface: USB(HID) and RS232C(COM6)
Dimension (WxDxH) 362 x 237 x 336 mm
Weight 5 Kg
Power Supply DC 12V/5A (AC 100V-240V, 60W)
Temperature Operating: 0-50 C at 10% to 90% Humidity
Certification CE, CB, FCC, KC
